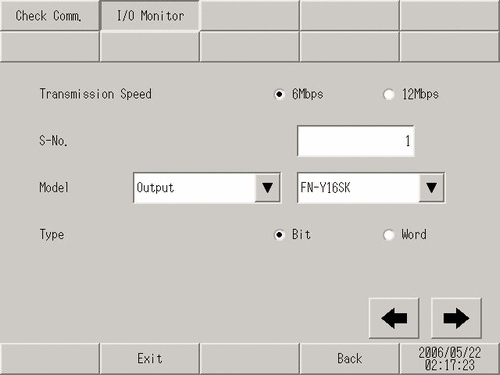

Unit setting screen
Unit setting screen
Select the station number and model of the unit to which the I/O monitor is applied.
Transmission Speed
Select the transmission speed from [6Mbps] and [12Mbps].
S-No.
Enter the station number of the unit to which the I/O monitor is applied within the range of 1 to 63.
Model
Select the model of the unit to which the I/O monitor is applied.
Type
Select the type of I/O data, either [Bit] or [Word].

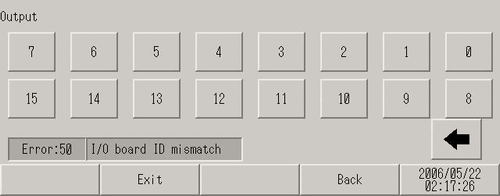

Bit monitor screen
Bit monitor screen
Displays the resulting output status of the I/O monitor in bits.

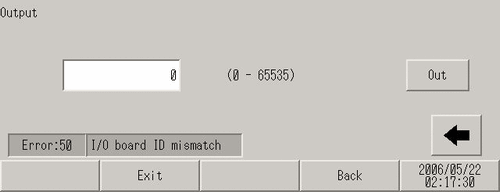

Word monitor screen
Word monitor screen
Displays the resulting output status of the I/O monitor in words.
