30.14.1.1 Assigning Symbol Variables to Instructions from Parts

You can allocate the symbol variables allocated to parts on the drawing screen to the instruction operands in the Logic.

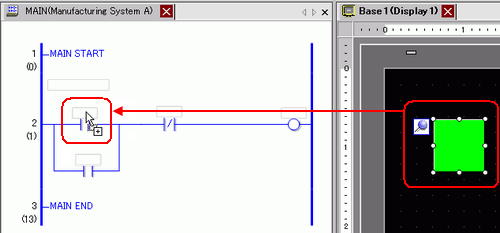

1. Click the part on the drawing screen. Drag it to the instruction operand to which you want the symbol variable allocated. Release the mouse where the pointer changes from to .


2. Select the symbol variable.




   • Symbol variables that can be allocated differ depending on parts.
     30.14.1.6 Drag and Drop Parts

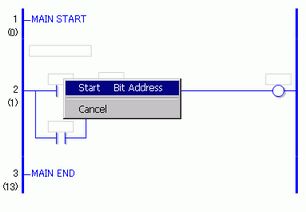

   • When more than one symbol variable is allocated to a part, the possible symbol variables are displayed.

   • Click [Cancel] to cancel the symbol variable allocation.

   • It is not possible to map a symbol variable where the pointer is displayed as .

3. The symbol variable allocated to the part is allocated to the instruction operand.
