This section explains how to describe a logic program using IL.

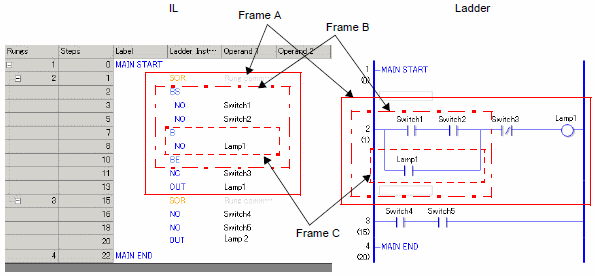

| Instruction Name | Description | illustration |
| SOR | Indicates a starting point of a circuit. From an SOR to the next SOR is one circuit. | Frame A |
| BS | Indicates a starting point of a branch. The section from BS to B is the upper portion of the branch in the ladder configuration. | Frame B |
| B | Indicates a branch (lower portion). The section from B to BE is the lower portion of the branch in the ladder configuration. | Frame C |
| BE | Indicates an ending point of a branch. | — |
Inserting Rungs/Instructions
Select the first rung (MAIN START).


Click the icon  . An SOR (Circuit Starting Point) is inserted into the rung next to the MAIN START, and then a box for adding an instruction is displayed.
. An SOR (Circuit Starting Point) is inserted into the rung next to the MAIN START, and then a box for adding an instruction is displayed.

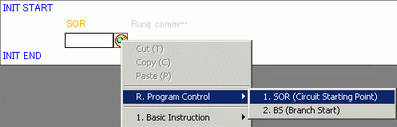

An SOR (Circuit Starting Point) can also be inserted using the  icon or right-click menu as shown below.
 icon or right-click menu as shown below.

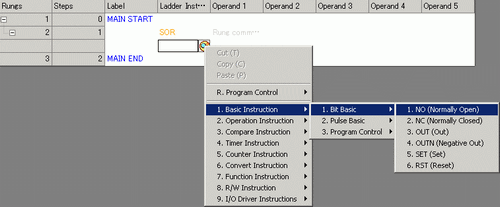

You can insert the instruction using the icon  or typing the instruction name.
 or typing the instruction name.

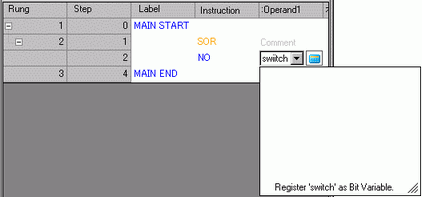

Allocate a symbol variable to [Operand 1] for the instruction.


Inserting Branches
Select the instruction (NO instruction) to insert the branch.

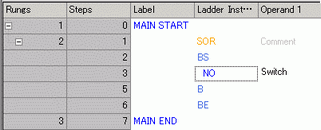

Click the icon  . BS, B and BE are inserted.
. BS, B and BE are inserted.
        The sections from BS to B and from B to BE are the upper portion and lower portion of the branch, respectively, in the ladder configuration.

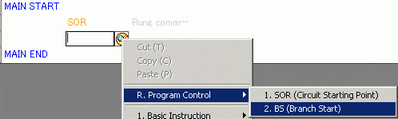

A BS (Branch Starting Point) can also be inserted using the  icon or right-click menu as shown below.
 icon or right-click menu as shown below.
