30.14.6.3 Editing Logic Parts

You can edit and delete part names and comments for registered logic parts.

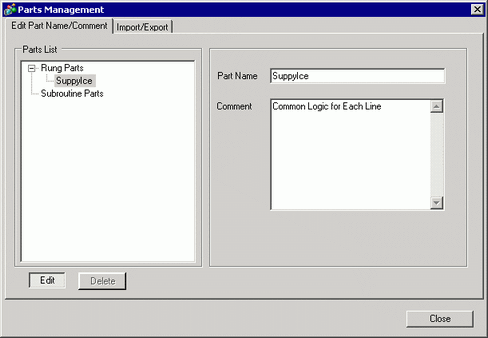

1. From the [Logic (L)] menu, point to [Parts (M)], and click [Parts Management (M)]. The [Parts Management] dialog box appears.

2. Select [Edit Part Name/Comment] to edit rung parts, and select [Subroutine Parts] to edit subroutine parts.

3. From [Parts List], click [Rung Parts] if you want to edit rung parts, or click [Subroutine Parts] if you want to edit subroutine parts, and select [Parts Name].



   • You can also display [Parts Name] by clicking the icon .

4. To edit [Parts Name] or [Comment], click [Edit] to modify the text in [Parts Name] or [Comment].

   to delete parts, click [Delete (D)]. When the following dialog box appears, click [Yes (Y)].


5. Click [Close] to close the [Parts Management] dialog box.
