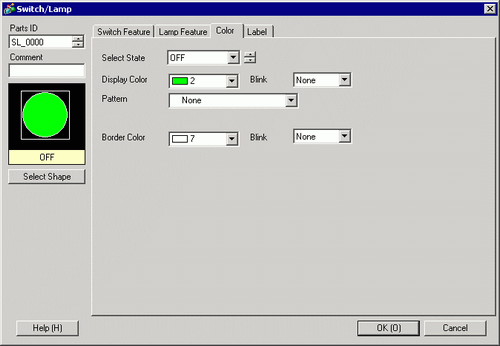

Select State
Select the Lamp state.
Set the color for the Lamp state.
OFF
You can set the color of the Lamp when OFF.
ON
You can set the color of the Lamp when ON.
State 0 to State 255
Specify the [Number of States] in the [Lamp Feature]'s detail settings, and then set the color of each of the Lamp states.
13.8 Lamp Settings Guide
When the interlocked status display or the delayed status display of the switch is combined with the lamp, priority is given to the [Interlock] or [In Delay] feature over the state display of the lamp.
10.15.1.4 Switch Common/Extended
Display Color
Specify the Lamp color.
Colors set in GP-Pro EX may appear differently after the project is transferred to the Display. In order to check colors after transferring data, run a project simulation.
Pattern
Specify a pattern.
Pattern Color
Select the pattern color for the Lamp.
Border Color
If the Lamp is set to have a border, select a color for it.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Display Color], [Pattern Color], and [Border Color].
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
1.6 Supported Colors
