When the value in the associated word address changes, the display state of the lamp also changes.
Explained here is the procedure to display the 256 combinations of ON/OFF states for bits 00 to bit 07 in word address (D100) in different colors using a single lamp.
From the [Parts (P)] menu, point to [Switch Lamp (C)] and select [Lamp (L)] or click
to place a lamp on the screen.
Double-click the placed lamp. The Switch/Lamp dialog box appears. Click [Extended].
Set the [Number of States] and [State Switch Condition]. Setting the [Number of States] to 3 or more allows you to set [State Switch Condition].
(For example, [Number of States] = 256, [State Switch Condition] = Change state by data)
Specify the address to display the color coding of the lamp in [Word Address] (For example, D100)
In [Select Shape], select the lamp shape for each [State].

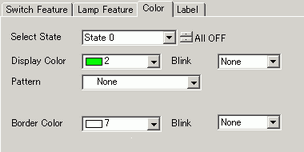

Click the [Color] tab. In the [Select State] list, select [State 0] and define its [Display Color].
[State 0] is the state where all the specified bit addresses are OFF.
Each [State] is defined by the ON/OFF state of the bottom 8 bits (bit 00 to bit 07) in the specified word address.
|
State |
Description |
|||||||
|---|---|---|---|---|---|---|---|---|
|
Bit 7 |
Bit 6 |
Bit 5 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 0 |
|
|
[State 0] |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
[State 1] |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
[State 2] |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
|
[State 3] |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
|
[State 4] |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
|
[State 5] |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
|
[State 6] |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
|
[State 7] |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
|
[State 8] |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
|
[State 9] |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
1 |
|
[State 10] |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
0 |
|
[State 11] |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
[State 12] |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
0 |
|
[State 13] |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
1 |
|
[State 14] |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
0 |
|
[State 15] |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
|
[State 16] |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
0 |
|
[State 17] |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
1 |
|
: |
: |
: |
: |
: |
: |
: |
: |
: |
|
[State 255] |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
The lamp does not display normally if the bit states are outside the defined [Select State] options. For example, if the [Number of States] is 3, you can use states 0, 1, and 2. Turning on bits 1 and 2 creates invalid state 3, and the lamp continues to display its previous valid state.
Select [State 1] in [Select State] and set the [Display Color]. [State 1] is the state in which "Bit 0" of Word Address D100 is turned ON.
Set [Display Color] for states, from [State 2] to [State 255].
Depending on the shape, the color setup procedure may differ from the procedure described above. Click [Select Shape]. The [Select State] window appears. Select each state and click [Open] to select a shape and color.
Depending on the shape, you may not be able to change the color.
Click the [Label] tab and define the label for each state. Specify the font type and size, then type the text and click [OK].
When you select a lamp and press the [F2] key, you can directly edit the text on the label.
