X Coordinate/Y Coordinate

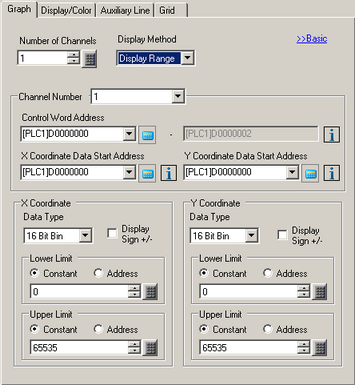

Set [Data Type] and [Upper Limit]/[Lower Limit] for X and Y coordinates.
Data Type
Choose the graph data type from [16 Bit Bin] or [32 Bit Bin].
Display Sign +/-
Set to display negative numbers.
Upper Limit/ Lower Limit
Select [Constant] or [Address] as the method for setting the upper and lower limits of the display range and then define the upper and lower limits.
Constant
Specify a set constant as the Min/Max value.
Address
Specify the address where the Upper/Lower Limit values are stored.
|
Data Type |
Display Sign +/- |
Setting Range |
|---|---|---|
|
16 Bit Bin |
Cleared |
0 to 65535 |
|
Selected |
-32768 to 32767 |
|
|
32 Bit Bin |
Cleared |
0 to 4294967295 |
|
Selected |
-2147483648 to 2147483647 |
If [Display Sign +/-] is selected, negative numbers are handled using 2's complement.
