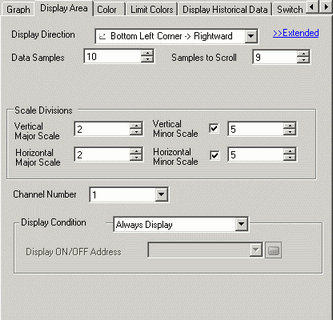

Display Direction
Select the graph display direction.
Data Samples
Set the number of sets of data samples to display on a single line. The range depends on the defined model's resolution.
|
Resolution |
Data Samples |
|
320 x 240 pixels (QVGA) |
1...319 |
|
640 x 480 pixels (VGA) |
1...639 |
|
800 x 600 pixels (SVGA) or higher |
1...799 |
You can check the resolution from the [System Settings] window's [Display].
When [Fill Below Line] is set, the maximum number of [Data Samples] is 97.
Set the Data Samples with a number smaller than the number of [Occurrences] in the Sampling settings.
Samples to Scroll
Select the number of sets of data to remove when the graph fills the Display Area. This can only be set when the Graph Type is [Normal]. Set this within the range specified by [Data Samples].
Scale Divisions
Vertical Major Scale/Minor Scale
Set whether to display the major and minor scale on the trend graph's Y-axis. If so, choose the number of divisions. The number of divisions can be set from 1 to 638 for Major Scale, and from 2 to 638 for Minor Scale.
Horizontal Major Scale/Minor Scale
Set whether to display the major and minor scale of horizontal axis on the trend graph's Y-axis. If so, choose the number of divisions. The number of divisions can be set from 1 to 638 for Major Scale, and from 2 to 638 for Minor Scale.
Channel Number
Select the Channel to configure the graph display condition.
Display Condition
Select the graph display condition.
Always Display
Always displays the graph.
Display When Bit OFF
Displays the graph when [Display ON/OFF Address] is OFF and hides the graph when [Display ON/OFF Address] is ON.
Display When Bit ON
Displays the graph when [Display ON/OFF Address] is ON and hides the graph when [Display ON/OFF Address] is OFF.
Display ON/OFF Address
Set the bit address to show or hide the graph display.
