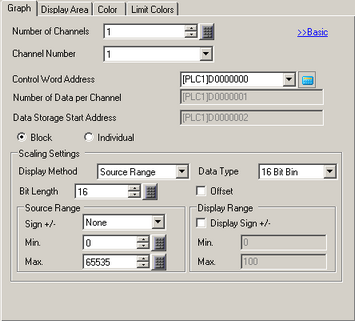

Configure scaling settings such as the data type and sign +/- for each channel.
Block/Individual
Select Block to define channel settings, such as [Data Type] and [Sign +/-] as a single group. Select Individual to define settings individually for each channel. When [Display Method] = [Display Range], this setting is fixed as [Block].
Scaling Settings
Display Method
Select the setup method for the graph display range from [Source Range] and [Display Range].
19.14.2.1 Data Block Display Graph - Display Range
When [Display Range] is selected, you cannot select the [Fill Below Line] check box in the [Color] tab's Extended settings.
When [Display Range] is selected, the [Alarm] tab is hidden.
When [Source Range] is selected, the [Auxiliary Line] tab is hidden.
Bit Length
If [Data Type] is [16 Bit Bin], set the data's enabled bit length from 1 to 16.
