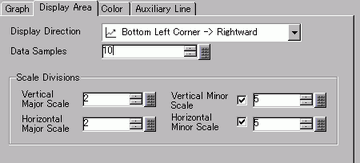

Display Direction
Select the graph display direction.
Data Samples
Set the number of sets of data samples to display on a single line. The range depends on the defined model's resolution.
|
Resolution |
Data Samples |
|
320 x 240 pixels (QVGA) |
1...319 |
|
640 x 480 pixels (VGA) |
1...639 |
|
800 x 600 pixels (SVGA) or higher |
1...799 |
You can check the resolution from the [System Settings] window's [Display].
When [Fill Below Line] is set, the maximum number of [Data Samples] is 97.
Vertical Major Scale/Minor Scale
Set whether to display the vertical major and minor scale on the trend graph (Y-axis). If so, choose the number of divisions. The number of divisions can be set from 1 to 638 for Major Scale, and from 2 to 638 for Minor Scale.
Horizontal Major Scale/Minor Scale
Set whether to display the horizontal major and minor scale on the trend graph (X-axis). If so, choose the number of divisions. The number of divisions can be set from 1 to 638 for Major Scale, and from 2 to 638 for Minor Scale.
