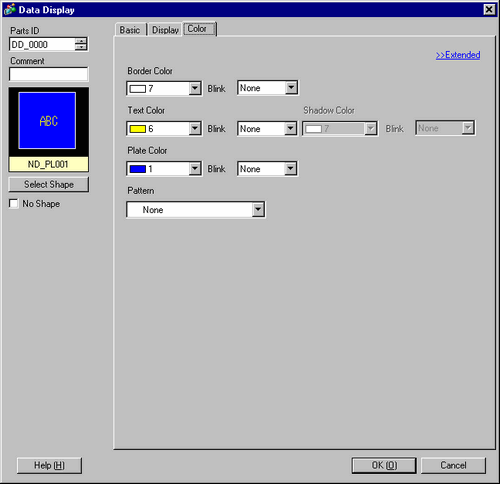

Select colors for text and parts.
Border Color
Set the border color of the part.
Depending on the shape, you may not be set a color.
Text Color
Select the text's color.
Shadow Color
Set the color for text's shadow.
Depending on the shape, you may not be set a color.
This can be set only when [Shadow] is selected under [Text Attribute] on the [Display] tab.
Plate Color
Set the background color of the part.
When the [Plate Color] is set to transparent, a Data Display and a Message Display will be placed on the front layer and displayed overtop other objects. Too many objects in the front layer may reduce the speed of the display's redrawing speed.
For details regarding the Layer Separator, please refer to the following.
21.8 About Object Position and the Layer Separator When Setting Up Animation
When the Plate Color is set to transparent and [No Shape] is selected, only the words are displayed. However, the range that can be touched when Allow Input is enabled will include only the Text Display Parts and becomes smaller than the normal range.
When you use a Window screen in ST3000 series and GP3200 series, select a color for [Plate Color] except a transparent.
In ST3000 and GP3200 series models, the plate color cannot be transparent.
When the plate color is set to transparent, a warning appears when you save a project.
Pattern
Set the background pattern of the Part.
Pattern Color
Set the background pattern color.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Border Color], [Text Color], [Shadow Color], [Plate Color], and [Pattern Color].
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]). 1.6 Supported Colors
