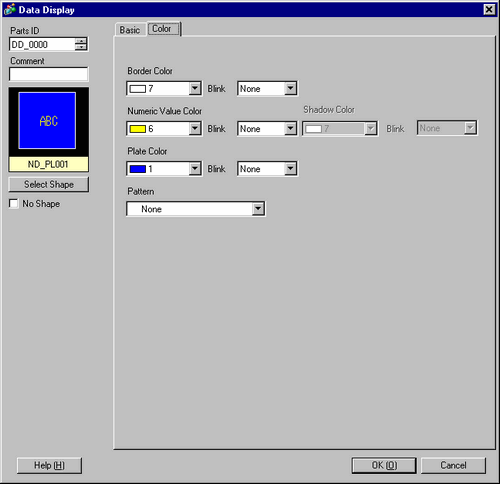

14.6 Display the Date/Day/TimeThis screen is used to specify the colors for Date/Time.
14.6 Display the Date/Day/Time
Border Color
Set the border color of the part.
Depending on the shape, you may not be set a color.
Numeral Value Color
Select the text's color.
Shadow Color
Set the color for text's shadow.
Depending on the shape, you may not be able to set the color.
This can be set only when [Shadow] is selected under [Text Attribute] on the [Display] tab.
Plate Color
Set the background color of the part.
When setting the plate color to transparent, the display speed may worsen with an increased number of display part positions because the display parts are positioned on the front layer used by the animation function.
For details regarding the layer separator, please refer to the following.
21.8 About Object Position and the Layer Separator When Setting Up Animation
When you use a Window screen in ST3000 series and GP3200 series, do not select transparent as the [Plate Color].
In ST3000 and GP-3200 series models, the plate color cannot be transparent.
When the plate color is set to transparent, a warning appears when you save a project.
Pattern
Set the background pattern of the part.
Pattern Color
Set the background pattern color.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Border Color], [Numeric Value Color], [Shadow Color], [Plate Color], and [Pattern Color].
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
1.6 Supported Colors
