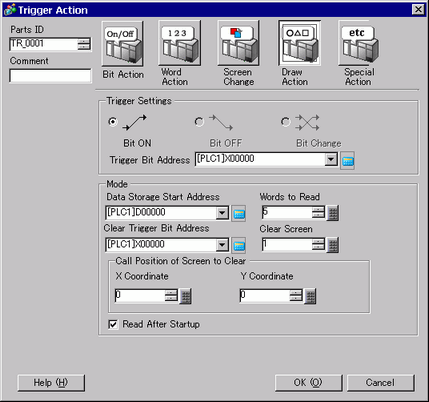

When the trigger bit address turns ON, drawing action is executed.
Trigger Settings
Bit ON
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from OFF to ON.
Trigger Bit Address
Specify the bit address that triggers drawing of the picture.
Turns OFF once the drawing is displayed.
While drawing, save the drawing data.
Mode
Data Storage Start Address
Stores the picture to draw, attributes, and so on as drawing data in the word address.
Specify the start address of this word address.
Words to Read
Specify 5 to 7 words for the drawing data.
Clear Trigger Bit Address
Specify the trigger bit for erasing the drawn picture. When the clear bit turns ON, the clear screen is displayed over top.
When the clear screen is displayed, the bit address turns off automatically.
Clear Screen
Specify the screen number of the screen (Base Screen) used for erasing the picture.
The clear screen needs to be prepared beforehand.
Call Position of Screen to Clear
Specify the load coordinates (X coordinate, Y coordinate) of the clear screen. The center coordinates of the clear screen is loaded in the specified location. For example, when the clear screen resolution is VGA (640x480), load into coordinate (320,240).
The top-left part of the screen is (0,0).
Read After Startup
Reads the drawing data when the [Trigger Settings] condition becomes true.
Cannot use when the [Data Storage Word Address] is an internal device.
