When setting addresses with Parts or the Script feature, use the display unit internal devices to distinguish between them.

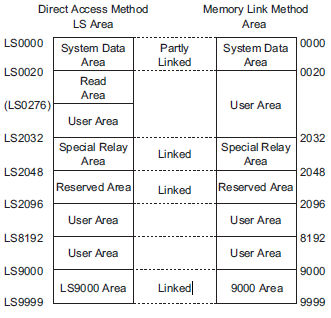

The Direct Access Method LS Area and the Memory Link Area (System Area) are mutually linked, with the exception of some addresses.
The System Data Area in the Direct Access Method (LS Area) and the System Data Area in the Memory Link Area are partially linked. Please confirm the details in the corresponding table.
|
Description |
Direct Access Method |
Memory Link Method |
|---|---|---|
|
Current Screen Number |
LS0000 |
0015 (Read) |
|
Error Status |
LS0001 |
0003 |
|
Clock Data Current Value (Year) |
LS0002 |
0004 (Read) |
|
Clock Data Current Value (Month) |
LS0003 |
0005 (Read) |
|
Clock Data Current Value (Day) |
LS0004 |
0006 (Read) |
|
Clock Data Current Value (Time) |
LS0005 |
0007, 0008 (Read) |
|
Status |
LS0006 |
0001 |
|
(Reserved) |
LS0007 |
None |
|
Change-To Screen |
LS0008 |
0015 (Write) |
|
Screen Display ON/OFF |
LS0009 |
0012 |
|
Clock Data Preset Value (Year) |
LS0010 |
0004 (Write) |
|
Clock Data Preset Value (Month) |
LS0011 |
0005 (Write) |
|
Clock Data Preset Value (Day) |
LS0012 |
0006 (Write) |
|
Clock Data Preset Value (Time) |
LS0013 |
0007, 0008 (Write) |
|
Control |
LS0014 |
0011 |
|
(Reserved) |
LS0015 |
None |
|
Window Control |
LS0016 |
0016 |
|
Window Number |
LS0017 |
0017 |
|
Window Display Position (X Coordinate) |
LS0018 |
0018 |
|
Window Display Position (Y Coordinate) |
LS0019 |
0019 |
|
Interrupt Output (When touch is OFF) |
None |
0010 |
|
Interrupt Output Data (When touch is ON) |
None |
0013 |
Some LS areas communicate with the device/PLC. For example, if [Change-To Screen Number] is changed to 3 (Memory Link Method address 0015) from a microcomputer board or other host, 3 is stored in Direct Access Method address LS0008, linked within the display unit. Make sure the LS areas' operation will not be affected by these changes.
