21.3.1 Procedure - Showing and Hiding Objects

Display a hidden switch by turning ON bit M100.

1. Select the switch you want to show or hide. From the [Edit (E)] menu select [Animation (N)], or right-click the object and select [Animation (N)].



   • The animation settings screen can also be displayed as follows.

   • Select an object on the screen, from the [Properties] window, [Animation], [Settings], click on the ellipsis [...].


   • On the [Screen Data List] dialog box, double click on the [Animation] column of the object you want to edit.

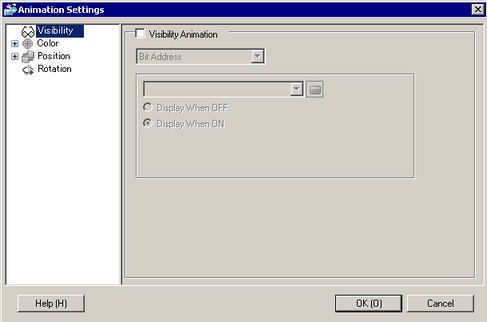

2. The [Animation Settings] dialog box appears. On the left pane, select [Visibility Animation].


3. Select the [Visibility Animation] check box.

4. Select [Bit Address] and enter the address used to run the visibility operation.



   • If you want to toggle show/hide using an expression, please refer to the following:
     21.10.2 Bool Expression

5. Select [Display When ON].
