20.2.2 Display Alarm Message (Banner) When Alarm Ends

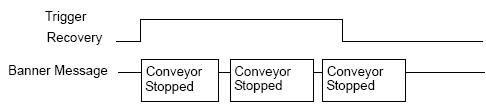

When a single alarm is triggered

While the alarm is active, a repeating Alarm Message scrolls on the screen. When the Alarm recovers, the final instance of the message scrolls until it is finished.

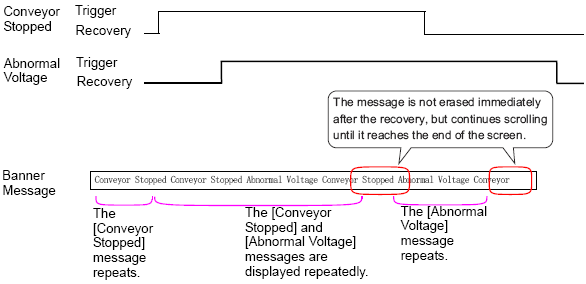

When multiple alarms are triggered

All active Alarm messages repeatedly scroll on the screen. When the [Conveyor Stopped] alarm recovers halfway through a message, the final [Conveyor Stopped] message scrolls until it is finished. After that the [Abnormal Voltage] message displays repeatedly. When the [Abnormal Voltage] alarm recovers, the final instance of the message scrolls until it is finished.
