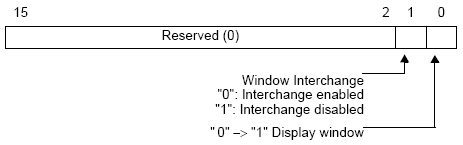

Window Control Address
Specify the word address to control the Window.
This can be set to either a connecting device (e.g. PLC) address or a display unit's internal device address (System Data Area).
When many parts are running from a window, you can sometimes speed up screen display by using a display unit's internal device addresses.
Window Specification
Select the method to display the Window.
Constant
Set the Window Number
Address

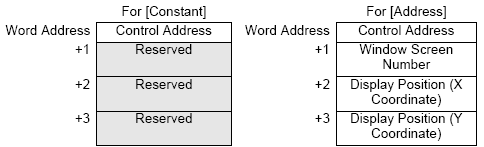

Four consecutive words are used starting from [Window Control Address], the Window Number and position are stored and designated indirectly.
Window Number
Shows the address ([Window Control Address] + 1) that defines which Window to display.
Window Display Position (X Coordinate/Y Coordinate)
Displays the address that stores the window position. The X Coordinate: [Window Control Address] + 2. The Y Coordinate: [Window Control Address] + 3.
This stores the coordinates of the Window's top-left corner.
The following positions are the starting coordinate point when a display unit's orientation is set to [Portrait].
Display units except GP-4100 Series: Bottom-left of the screen (0,0)
GP-4100 Series: Top-right of the screen (0,0)
For more details, please refer to the following.
3.9.1 Restrictions for Screen Display
Data Type
Select the type of data to store in the address from [Bin] or [BCD].
Window Number
Specify the number of the Window to display. The setting range is from 1 to 2000.
Window Screen Number
Display a list of the Windows. The [Window Number] will be automatically input by selecting the screen.
