Please refer to the Settings Guide for details.
22.9.1 D-Script/Common
[Global D-Script] Settings Guide See the following for further information about script commands.
22.11 Built-In
Function (Instruction) / Conditional Expressions
Please refer to the
Settings Guide for details.
22.9.1 D-Script/Common
[Global D-Script] Settings Guide
See the following for
further information about script commands.
22.11 Built-In
Function (Instruction) / Conditional Expressions

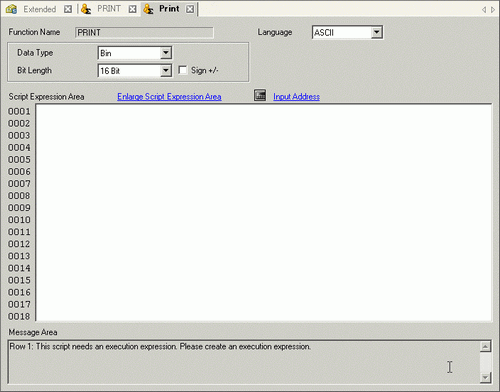

For example, while displaying the previously user created function "PRINT", create "Print".
On the [D-Script] dialog box, open
the script and user defined function you want to display simultaneously.
When you want to open D- Script, Global D-Script, or Extended Script,
from the [D-Script] dialog box click the [Script] tab in the bottom-left
corner, select the script you want to open in the [Type] list, and
then click [Open].
When you want to open user defined functions, from the [Function] tab
select the function you want to open, and then click [Edit].

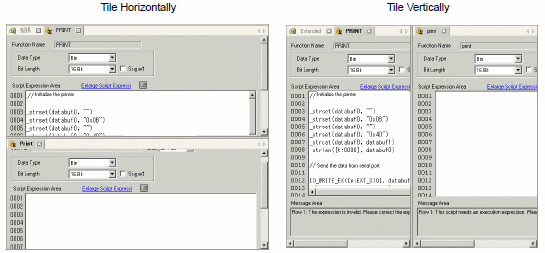

From the [View] menu, point to [Tile Display] and select either [Tile Vertically] or [Tile Horizontally].

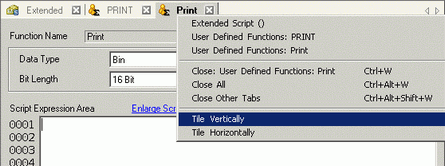

Right-click the
tab in the script or user defined function and select either
[Tile Vertically] or [Tile Horizontally] to split the screen.
Screens are tiled either horizontally
or vertically.
