Please refer to the Settings Guide for details.
22.9.1 D-Script/Common
[Global D-Script] Settings Guide See the following for further information about script commands.
22.11 Built-In
Function (Instruction) / Conditional Expressions
Please refer to the
Settings Guide for details.
22.9.1 D-Script/Common
[Global D-Script] Settings Guide
See the following for
further information about script commands.
22.11 Built-In
Function (Instruction) / Conditional Expressions
From the [Parts] menu, click [D-Script
(R)] or click
.
Click [Create]. The IDs for existing scripts are displayed in the [D-Script List].

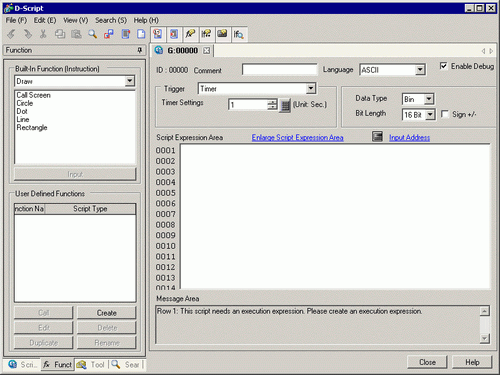

The [D-Script] dialog box is displayed.
Set up comments. Enter "Alarm Display".
In [Trigger], select [When Bit turns ON], and specify the [Bit Address] as M00100.
Create a program by adding Functions,
Statements, and Expressions to the Script Expression Area, to complete
the script.
When a string is selected, use the CTRL and SHIFT keys in combination with the arrow keys [→], [←] to select to the end of the text.
Press CTRL+F4 to close the current screen.
Press the [Esc] key to overwrite and save the script or to exit without saving.
The component tray displays registered D-scripts in the order they are created. To change the order of D-script parts in the component tray, change the ID number for registered parts, then from the [Edit] menu select [Auto-Align Trays]. You can change ID settings by double-clicking parts in the component tray to display the edit dialog box.
