22.3.1 Procedure - Copying Data in Blocks

1. From the [Parts] menu, click [D-Script (R)] or click .

2. Click [Create]. The IDs for existing scripts are displayed in the [D-Script List].

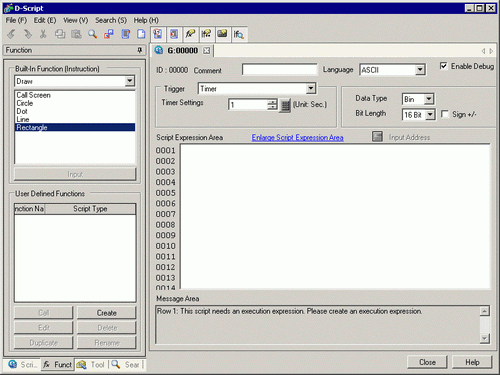

3. The [D-Script] dialog box is displayed.


4. For the [Trigger] select [When Bit turns ON], and specify the [Bit Address] as M000100.

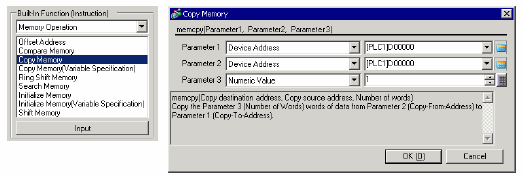

5. Click the [Function] tab, and from the [Built-in Function (Instruction)] select [Memory Operation].

6. Double-click [Copy Memory], and in the dialog box that follows, define the parameters for the destination address, source address, and number of words.

7. Click [OK]. The program is described in the [Script Expression Area].
   The script is now complete.
