37.18.2 Settings Menu - E-mailSummary

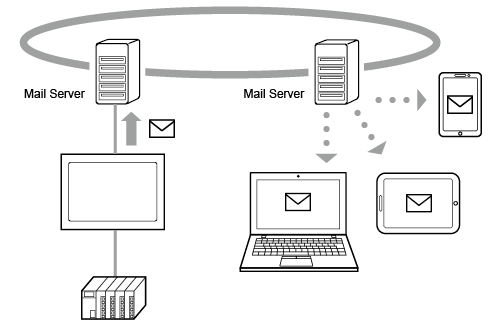

Setting up e-mail addresses of receivers and contents in advance enables you to send e-mail at a timing you want to.
You can also send e-mail in conjunction with the alarm and sampling functions.
37.18.2 Settings Menu - E-mail
Before putting it in to service, test "Win32OpenSSL" operations in the environment you are planning to use.
To check which models support E-mail, refer to the following.1.5 Supported Features
To use the E-mail feature on WinGP, .NET Framework version 4.5 or later is required.
Destination
Set up the e-mail addresses you want to send at one time as one group. You can register up to 255 receiver groups.
E-mail subject and body
The character code used for e-mail transmission is UTF-8 (Unicode).
Number of characters that can be set for [Subject] is up to 499 characters and [Body] is up to 4999 characters.
If you want to change the contents of the e-mail while the system is operating, specify the addresses or symbol variables indirectly by inserting them in [Subject] / [Body]. Number of addresses and symbol variables that can be set for [Subject] is up to 15 and [Body] is up to 255.
Setting example of indirect setting
The parts enclosed in parentheses [] are addresses and symbol variables. Enter "[[" or ,"]]" to indicate the bracket symbol "[" or "]".
Subject |
LineA - [w32s:Serial-number] & [w16u:Model-Number] |
Body |
Alarm is occurred. Value is [w16u:[PLC1]D00100], bit is [b:[PLC1]X0001]. Please contact [[wstr:Support Center]]. |
Illustration of e-mail to be sent
Subject |
LineA - 12345678 & 31001 |
Body |
Alarm is occurred. Value is 80, bit is 1. Please contact [Support Center]. |
File attachment
The number of files you can attach to e-mail depends on the size of files. A maximum 5 files, with a total file size up to 3600 KB.
Set the maximum total file size from 10 to 3600 KB.
