Display Group Number (#H_RecipeGroupID)
Specify Default Group Number
Specifies whether to select an initial recipe group that displays when changing to a screen with by the Enhanced Recipe List.
Yes
Specifies the recipe group ID, from 1 to 5000. When you change screens where an Enhanced Recipe List exists, it will display recipe labels for the specified recipe group ID. Using the system variable #H_RecipeGroupID, you can change the recipe group ID to change the recipe on display.
No
When you change screens where the Enhanced Recipe List exists, it will display no recipe labels. Using the system variable #H_RecipeGroupID, you can select the recipe group ID to display a recipe.
Status
You can select an address to store the Enhanced Recipe List's processing status or process results when running Enhanced Recipe List operations.
Status Address

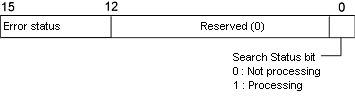

Specifies the address that stores the process status for refine search / sort operations and results of enhanced recipe operations. You can set up an internal device address only.
Bit 12 to 15 |
Description |
Details |
0 |
Completed Successfully |
- |
1 |
Incorrect #H_RecipeGroupID value |
Enhanced recipe data was transferred/received before the #H_RecipeGroupID value was stored. |
2 |
Incorrect #H_RecipeID value |
|
3 |
Conflicting operations |
While the Enhanced Recipe list ran one of the following operations, the process was interrupted by: Entering offline mode, transferring a project, turning the display unit off, or restarting the display unit.
|
4 |
Conflicting operations |
While the Enhanced Recipe list ran one of the following operations, the process was interrupted by: Entering offline mode, transferring a project, turning the display unit off, or restarting the display unit.
|
5 |
Delete Error |
An attempt was made to delete all the recipes in a recipe group (you cannot delete the last recipe). |
6 |
Copy error |
Copy is not allowed if the resulting number of recipes will exceed the limit. |
7 |
Capacity exceeded |
Copy is not allowed when the capacity of enhanced recipe data exceeds the limit for the screen area. |
13 |
Write Error |
Write unsuccessful. Transfer again. |
14 |
Write error |
Write unsuccessful. Transfer again. |
15 |
Update error |
Enhanced recipe data cannot update due to insufficient space in the screen area. |
Error Code (results reflected in the error status)
Refine Search/Sort
Refine search or sort current recipe labels.
When enabled, an area for searching and sorting appears at the top of the enhanced recipe list.
When enabled, search results from a search using the system variable #H_RecipeControlSearch also display in the enhanced recipe list.
For case-sensitive searches, turn OFF #H_RecipeSearchOption bit 0.
A.2.2.2 Word Type - #H System Variables
Default Sort Order (#H_RecipeLabelSortType)
Specifies the sort order for the initial recipe labels. Use the system variable #H_RecipeLabelSortType to change the sort order at run time.
ID
Displays recipe group IDs in ascending order.
Recipe label (ascending order)
Displays recipe labels in ascending order.
Recipe label (descending order)
Displays recipe labels in descending order.
Go to Enhanced Recipe Settings
Closes the [Enhanced Recipe List] dialog box and opens the [Common Settings] menu's [Enhanced Recipe] screen.
When defining [Specify Default Group Number], the specified recipe group (Recipe Group1) tab is displayed.26.27.2 Recipe Group (Recipe Group 1) Settings Guide
If no recipe groups are specified or the specified recipe group does not exist, the [Enhanced Recipe Group List] tab appears where you can create a new recipe group.26.27.1 Enhanced Recipe Group Settings Guide
