M.5.3 Setting up GP-Viewer EX or Remote PC Access License

Set the license required to use the Remote PC Access and GP-Viewer EX functions.

For details about the setting screen, refer to the setting guide.
M.17.2.8 Main Unit - Extended Settings
To use the Remote PC Access and GP-Viewer EX functions, you must purchase a Remote PC Access key code (model: EX-RPA) and GP-Viewer EX key code (model: EX-VIEWER-LICENSE).
When using the following models, you can set up the GP-Viewer EX license.
SP5000 Series (excluding Open Box)
GP4000 Series models (excluding GP-410*) with a LAN port
LT4000 Series
ST6000 Series
STM6000 Series

Using the Transfer Tool to set up GP-Viewer EX license

Go to Offline mode and touch [Main Unit] on the item changeover switch.

[Main Unit Settings] screen opens. Touch [Extended Settings].

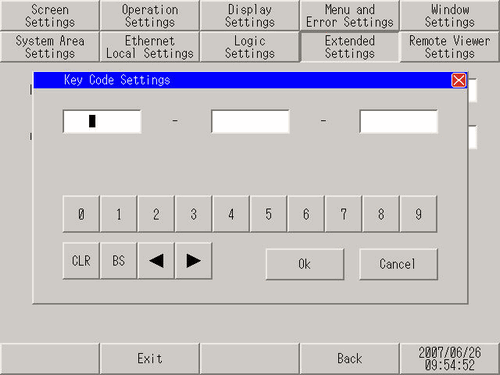

[Extended Settings] screen opens. Touch the [Remote PC Access Key Code] input field and use the keypad to enter the key code. Touch [OK]. (Example, [Remote PC Access Key Code]1111-2222-3333)

Touch [Exit] to save the changes and restart the display unit.

When you have enabled the GP-Viewer EX and RPA licenses, set up each function in GP-Pro EX. For information about the setting procedure and details of each function, refer to the following.
Remote PC Access
36.3.1 Procedure - Display or Operate a Computer from the Display Unit
GP-Viewer EX
37.3 Display and Operate Data on the Display Unit Using GP-Viewer EX

Use the following steps to set up the GP-Viewer EX license.

Use Ethernet or the USB cable to connect the Display Unit with the computer that has the Transfer Tool installed.

Turn ON the display unit.

Start the Transfer Tool, click [Transfer Settings], then in the [Communication Port Settings] select [USB] or [LAN]. Click [OK] to close the dialog box.

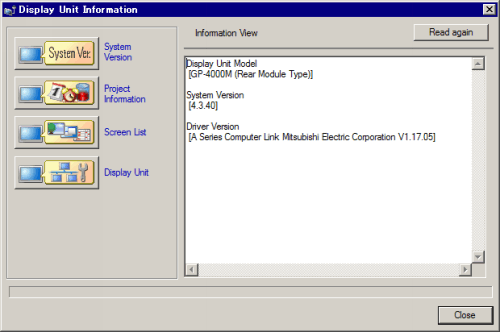

Click [Display Unit Information] and in the dialog box that pops up click [Display Unit]. When connected via Ethernet, the [Select Display Unit] dialog box appears. Enter the IP address of the target display unit.

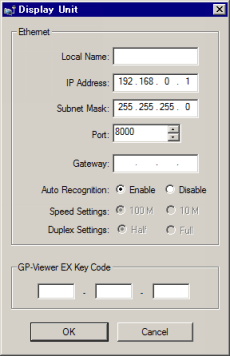

Fill in the [GP-Viewer EX Key Code] field and click [OK] to transfer the Ethernet information. The display unit will restart.

If you enter with the key code field left blank, then the GP-Viewer EX license is removed.

Click [Close] to close the [Display Unit Information] dialog box and exit the Transfer Tool.
