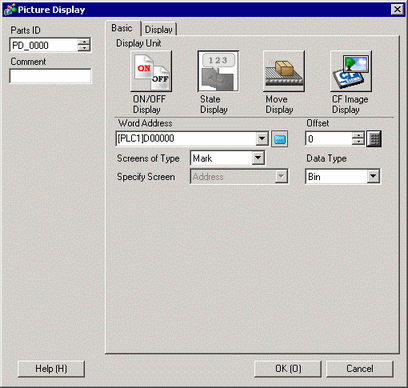

Word Address
Set the word address to change display. Stores the Mark Screen numbers to display in the set word address.
Screens of Type
Select the screen type to display.
Mark
Displays a picture registered in the mark screen.
Specify Screen
Fixed with [Address].
The screen number of the Mark Screen to be displayed is stored in the address set to the [Word Address].
Offset
Set the offset value from 0 to 8999. A Mark screen displays. It is defined by the value in the word address plus the offset.
Data Type
Select the data type of the stored number from [Bin] or [BCD].
