About the error in writing of EX Module Hardware Instruction Manual "EXM-DMM24DRF External wire connection diagram"
Posted: 2011, Nov. 1
Thank you very much for your continuous use of Pro-face products.
We have confirmed that there is an incorrect description in the "EX Module Hardware Manual".
We report about the error below.
We sincerely apologize for any inconvenience this may cause you.
Content of condition

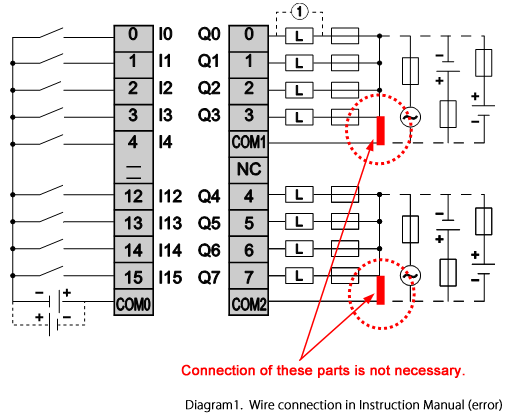

In “EX Module Hardware Instruction Manual”, there is an error on External wire connection diagram (circles with red dotted line) of EXM-DMM24DRF (16 points input / 8 points relay output module).
Applicable product
EX Module :
Manual:
| Product model: | EX 16 points input / 8 points relay output module |
|---|---|
| Product type : | EXM-DMM24DRF |
Manual:
| Manual title : | EX Module Hardware Manual |
|---|---|
| Corresponding page : | Page 21 |
Correction of error

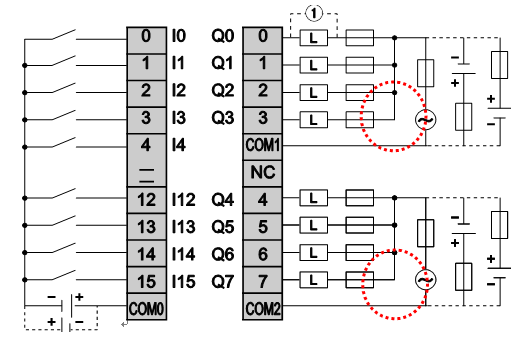

Please install the wire by following the diagram when using EXM-DMM24DRF.
Countermeasure
"EX Module Hardware Manual" has been modified. To download the PDF manual, click here.
Inquiry
If you have any inquiries, please contact our sales office in your region.
For contact information, please refer to the "Inquiry" page.
